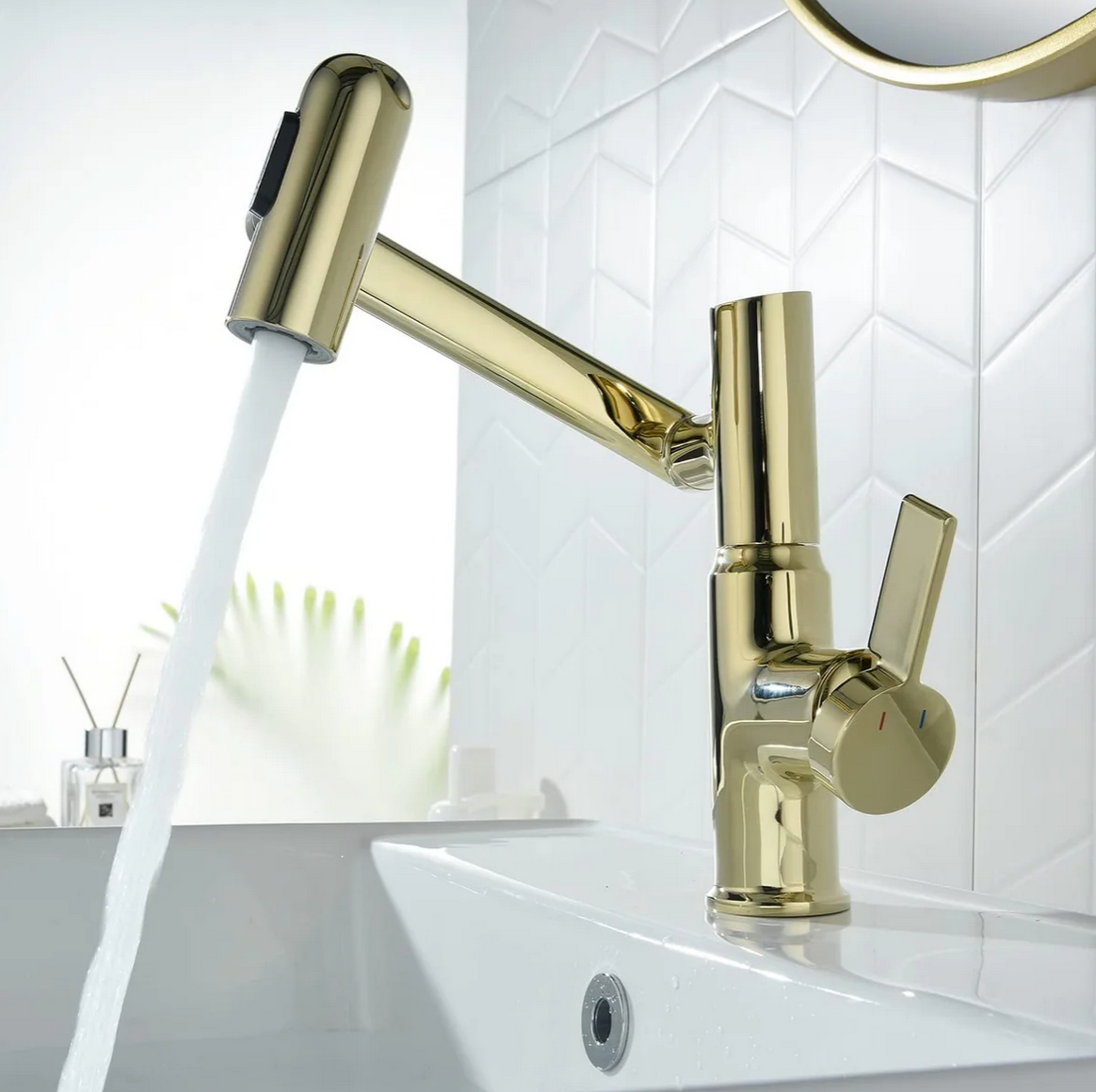

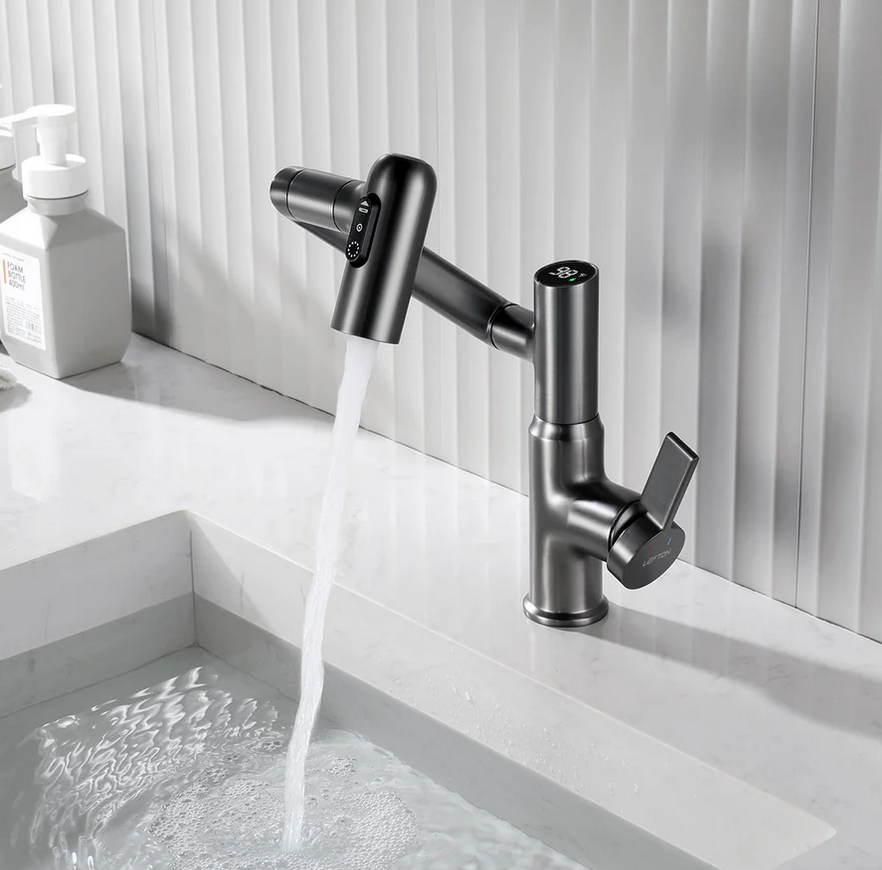

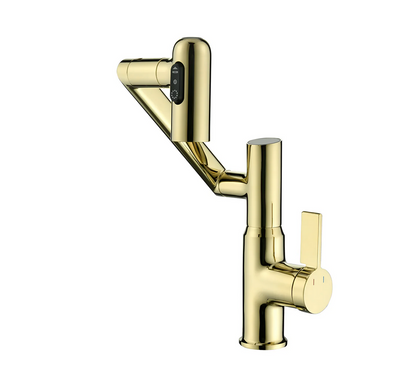

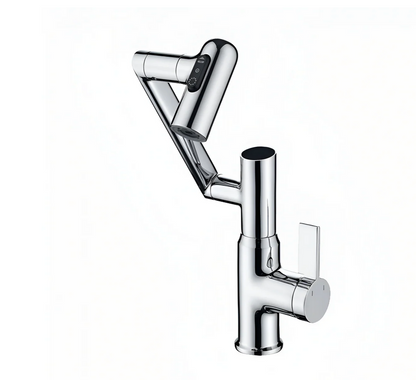

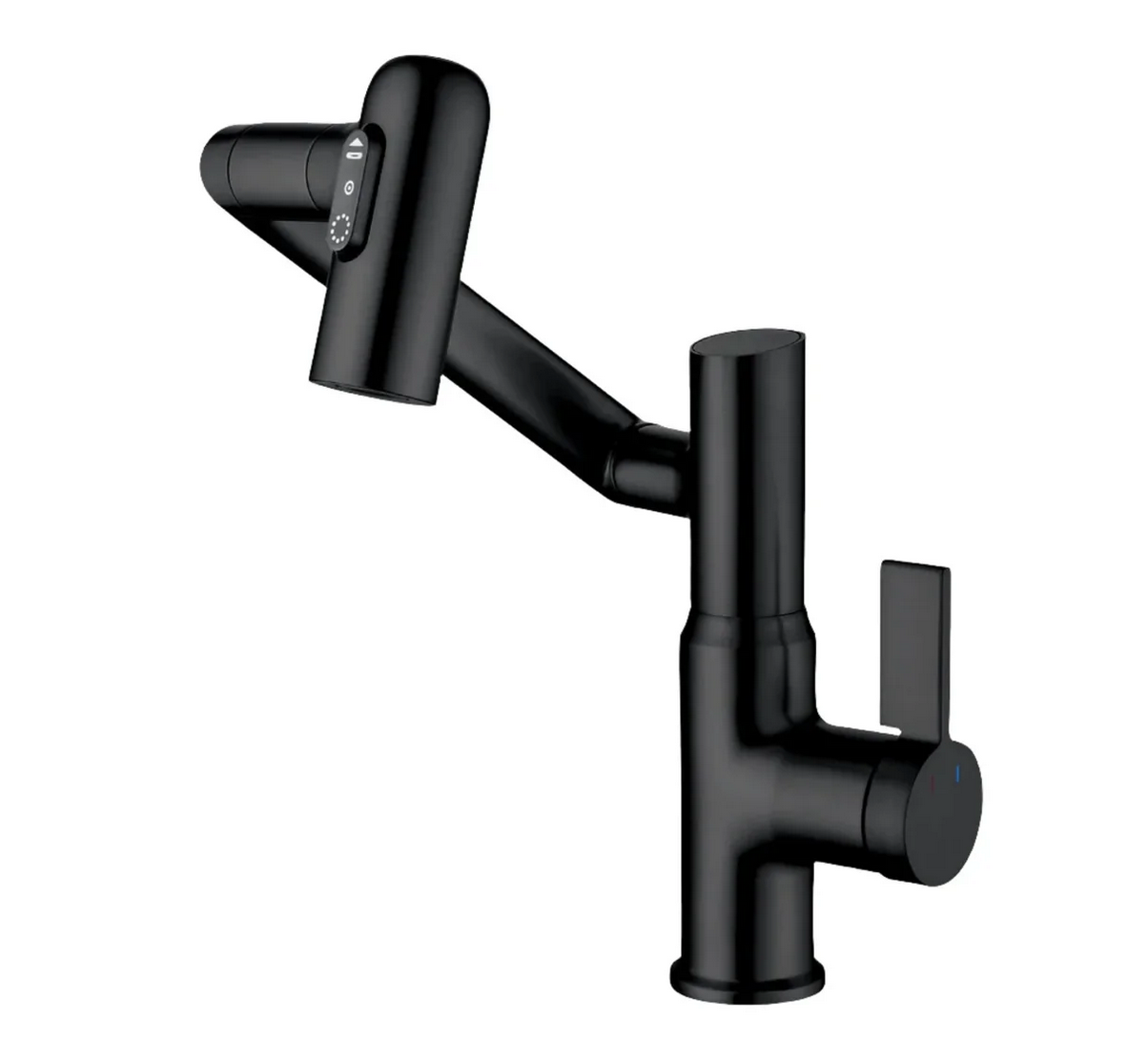

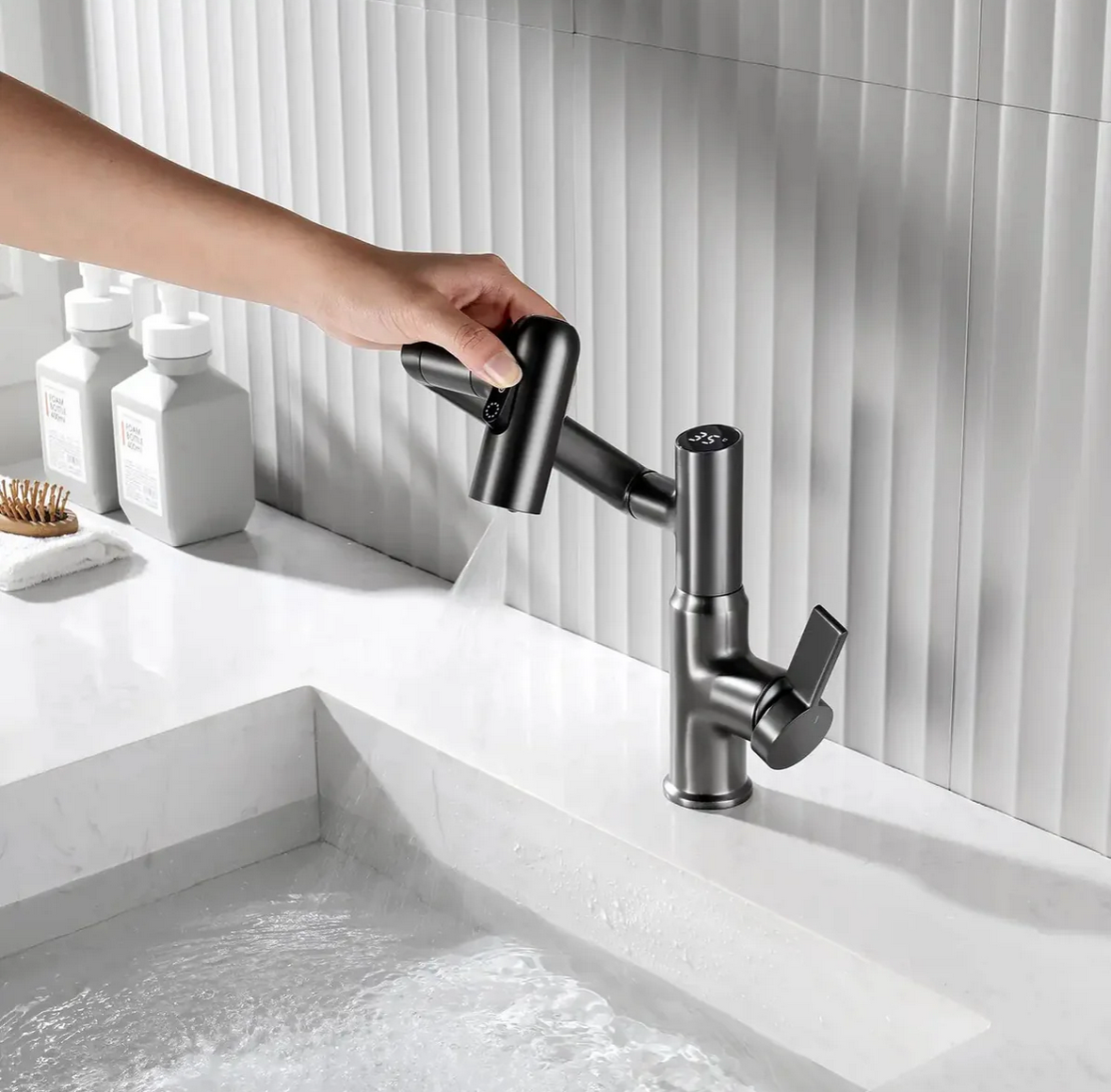

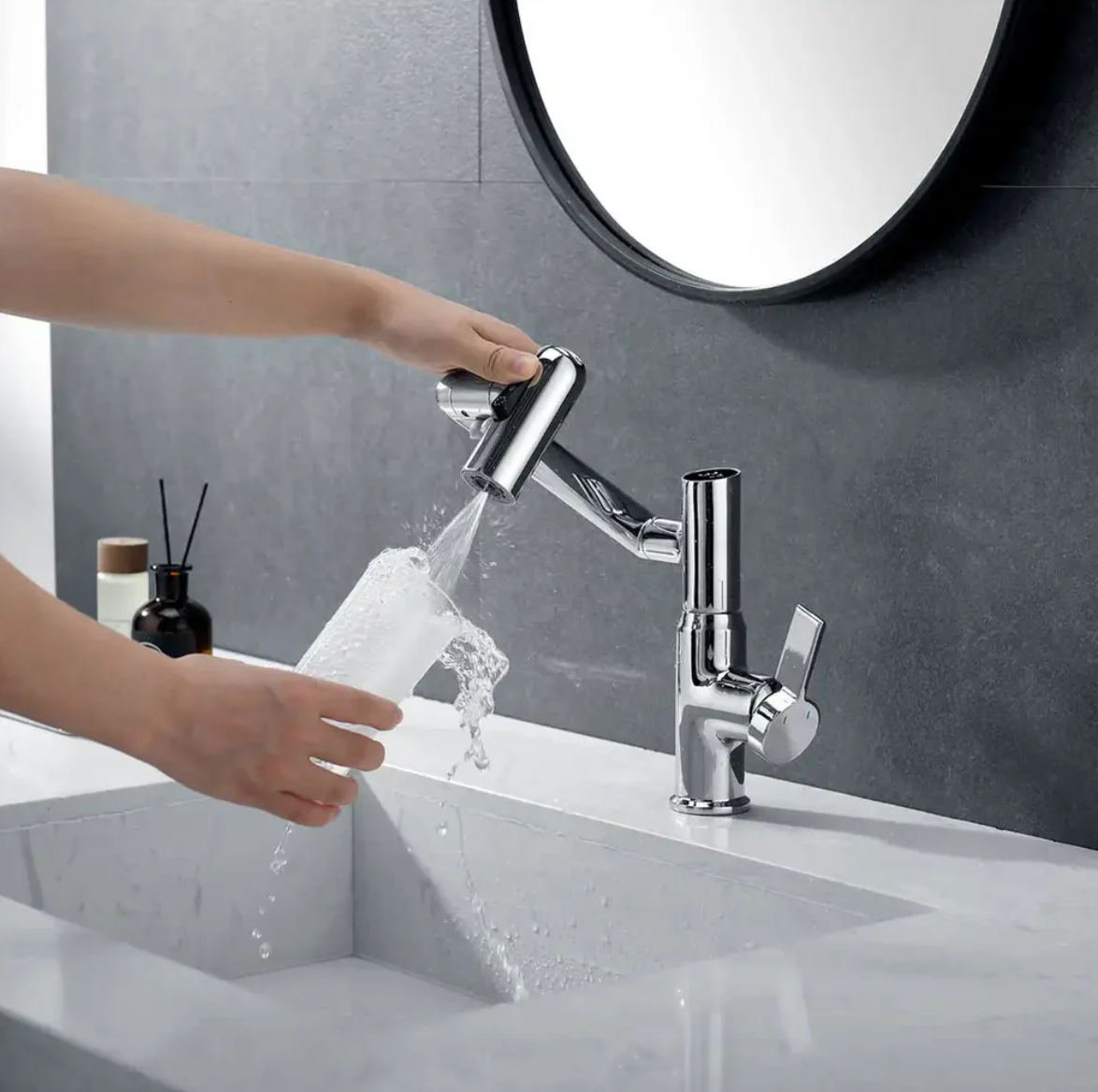

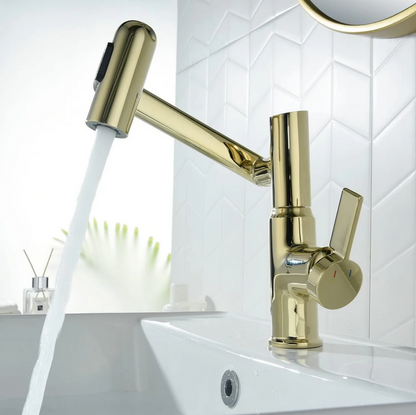

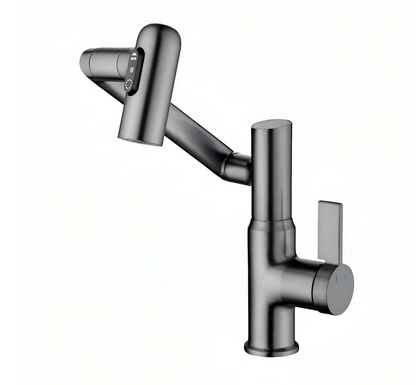

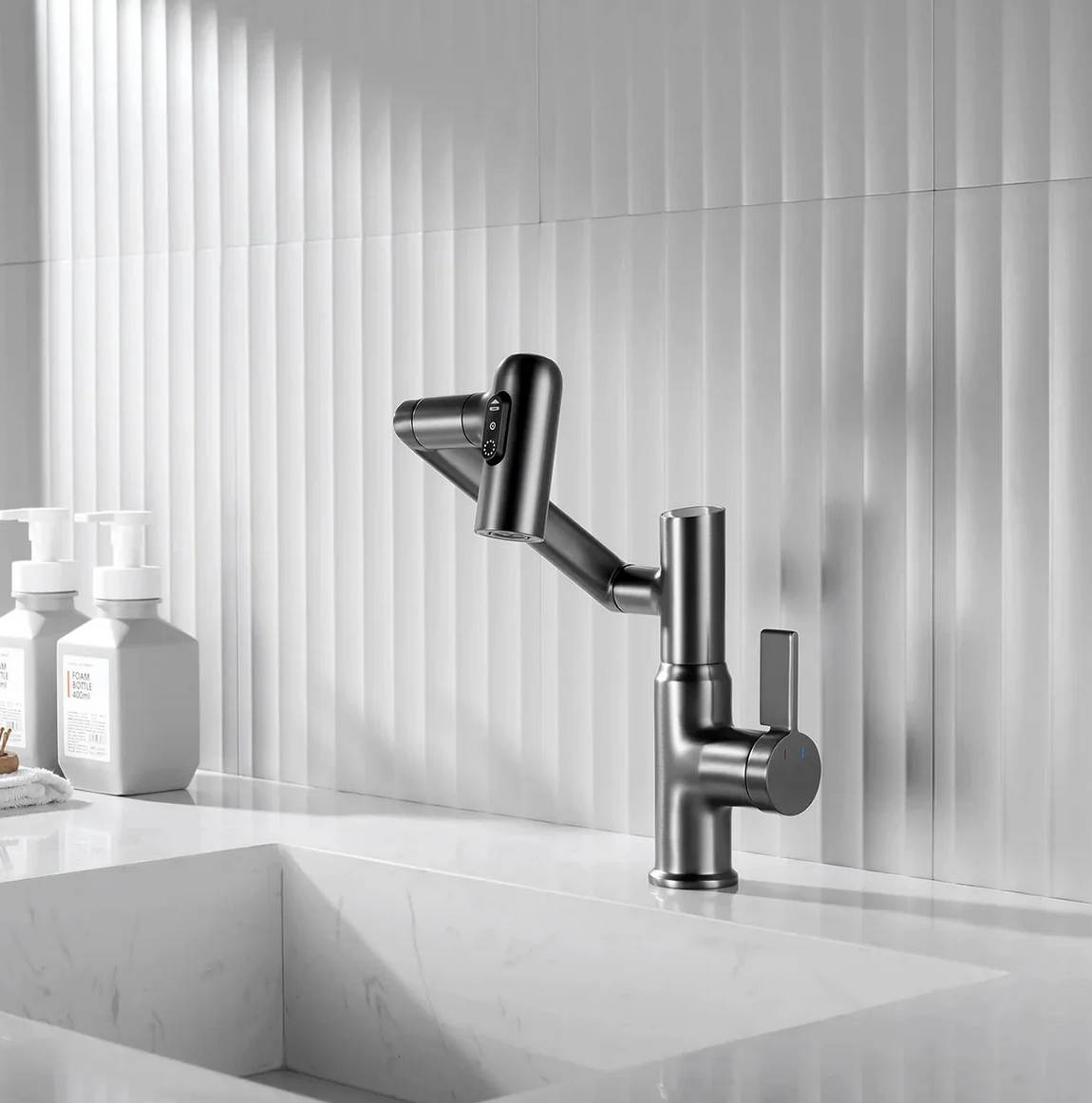

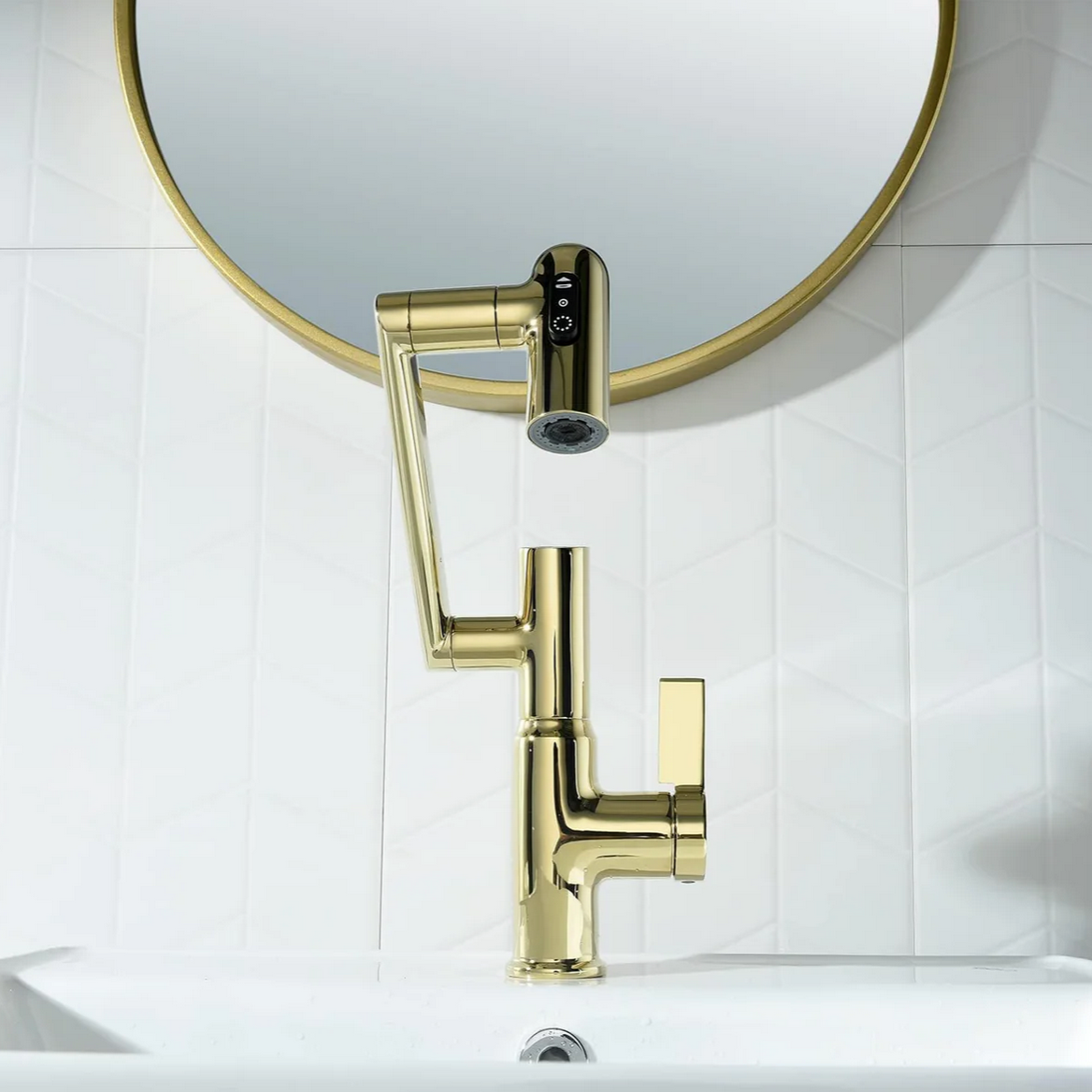

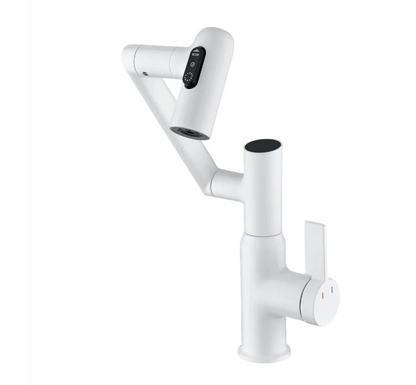

Hydrolux Smart Rotable Faucet

This faucet is designed for performance and convenience, blending advanced functionality with high-quality, durable materials.

Advanced Functionality

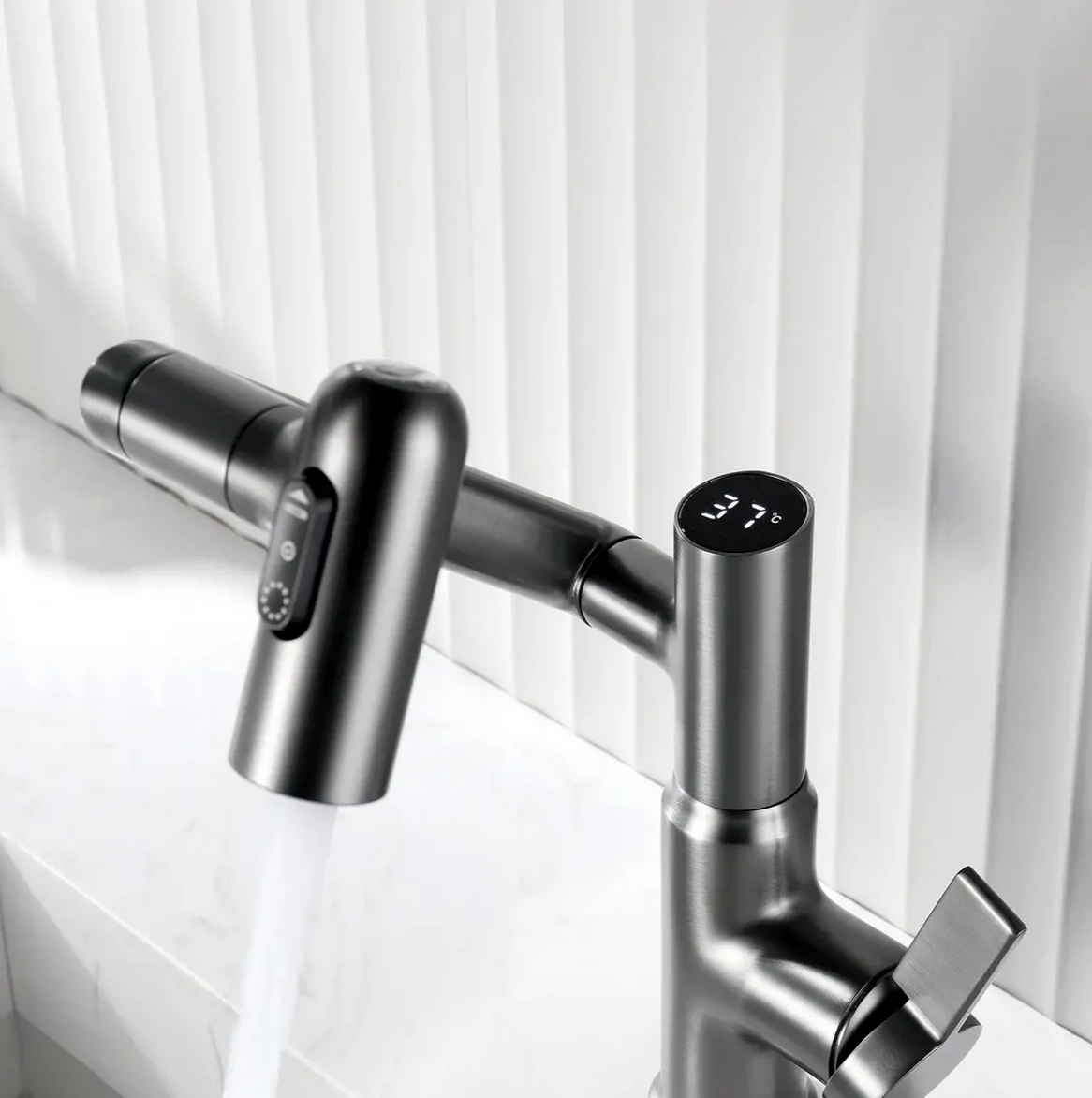

Instant Digital Temperature Readout

Activate the water flow, and the precise temperature (∘C/∘F) is displayed

automatically—no batteries or external power required. The unit is shipped in either Celsius or Fahrenheit based on your location.

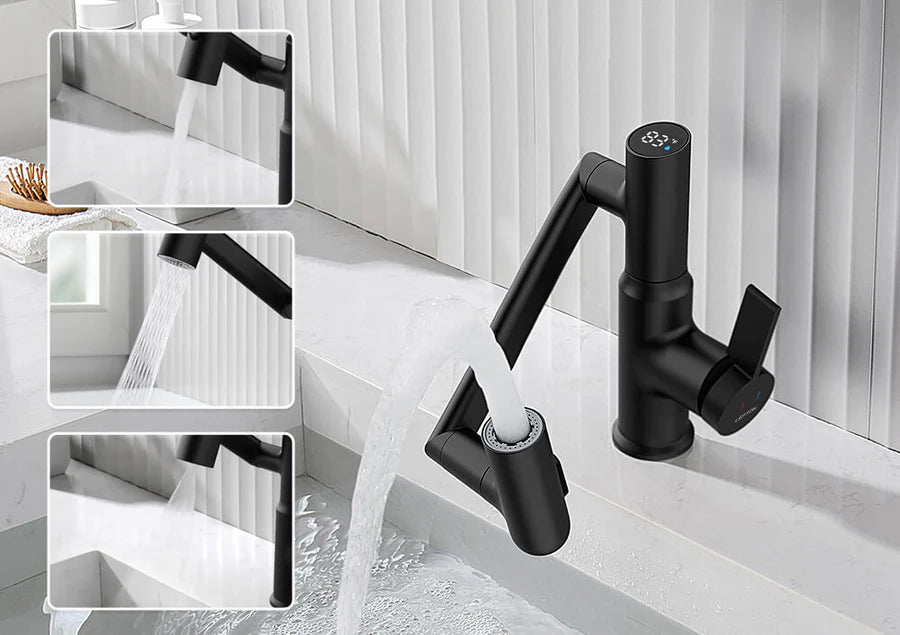

3-Function Pull-Down Spray HeadEffortlessly handle all tasks with three distinct water modes: a standard

Aerated Stream for filling, a powerful

Boost Spray for heavy cleaning, and a wide Swing Spray for rinsing.

Water Boost Technology

Instantly increase the flow rate by up to 30% with a dedicated button. Use the Boost function with the stream for rapid filling or with the ring spray for enhanced cleaning power.

Premium Ceramic Disc Valve

Built with ceramic disc valves that significantly exceed industry longevity standards, ensuring a lifetime of drip-free, durable performance and reliable water control.

Single Lever Control

A single lever handle allows for smooth, easy adjustment of both water temperature and flow.

Easy-to-Clean Surface

The specialized surface finish is engineered to resist mineral and water spot buildup, keeping the faucet looking pristine with minimal effort.

Materials & Dimensions

Primary Material

Brass & Stainless Steel Construction

Valve Core Type

Ceramic Disc Valve Core

Installation Type

Single Hole Deck Plate Mounted

Weight3.96 lbs (1.8 kg)

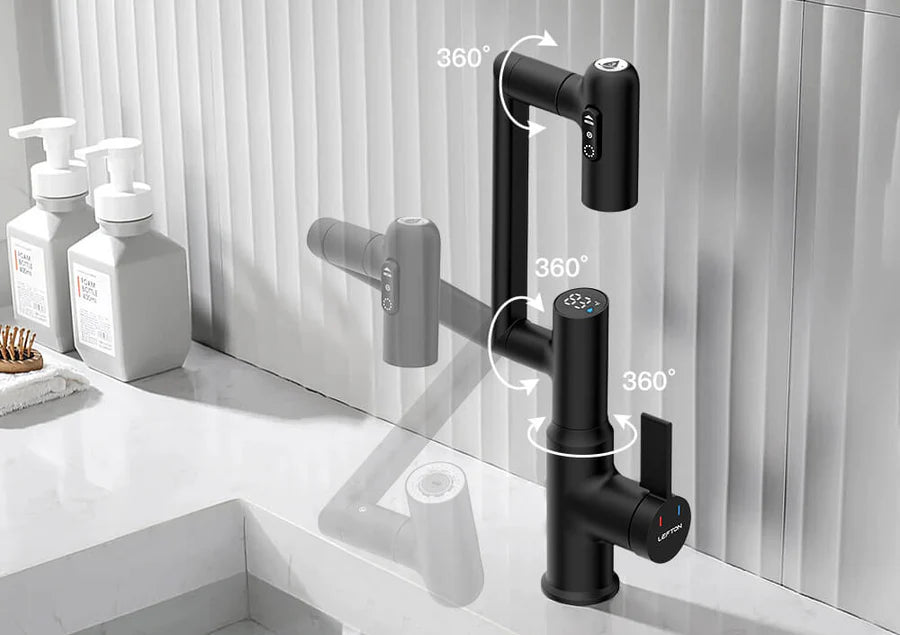

Rotatability

Multi-directional Rotatable Faucet (Excellent for multi-tasking)

Included Components

Yes, supply lines are included for installation.

Spray Types

Stream, Boost, and Swing Spray Head

Overall Height 12-1/2" (307 mm)

Overall Width

1-1/2" (38 mm)

Rotating Arm Length

7-7/8" (200 mm)

Spout Reach

7" (179 mm)

Phase 1: Preparation

1. STOP: Turn off the hot and cold water supply valves under the sink.
2. Remove your old faucet and clean the sink deck.
3. Attach the supply hoses to the base of your new faucet (hand-tighten).

Phase 2: Mounting

1. Drop the faucet, along with the hoses, through the hole in the sink/countertop.
2. From underneath, slide on the mounting washer and then the lock nut.
3. Ensure the faucet is straight, and then hand-tighten the lock nut.
4. Use your wrench to gently secure the lock nut until the faucet is firmly seated.

Phase 3: Connections & Test

1. Connect the supply hoses to the corresponding hot and cold water valves. Hand-tighten first.
2. Use the wrench for a final 1/4 turn on each connection. (Do not overtighten!)
3. Flush: Unscrew the spray head. Point the hose into the sink.
4. Turn the main water supply back on SLOWLY. Run the water for 1 minute to clear the lines.
5. Check all connections for any leaks.
6. Re-attach the spray head.

Done! Your smart faucet is ready.
